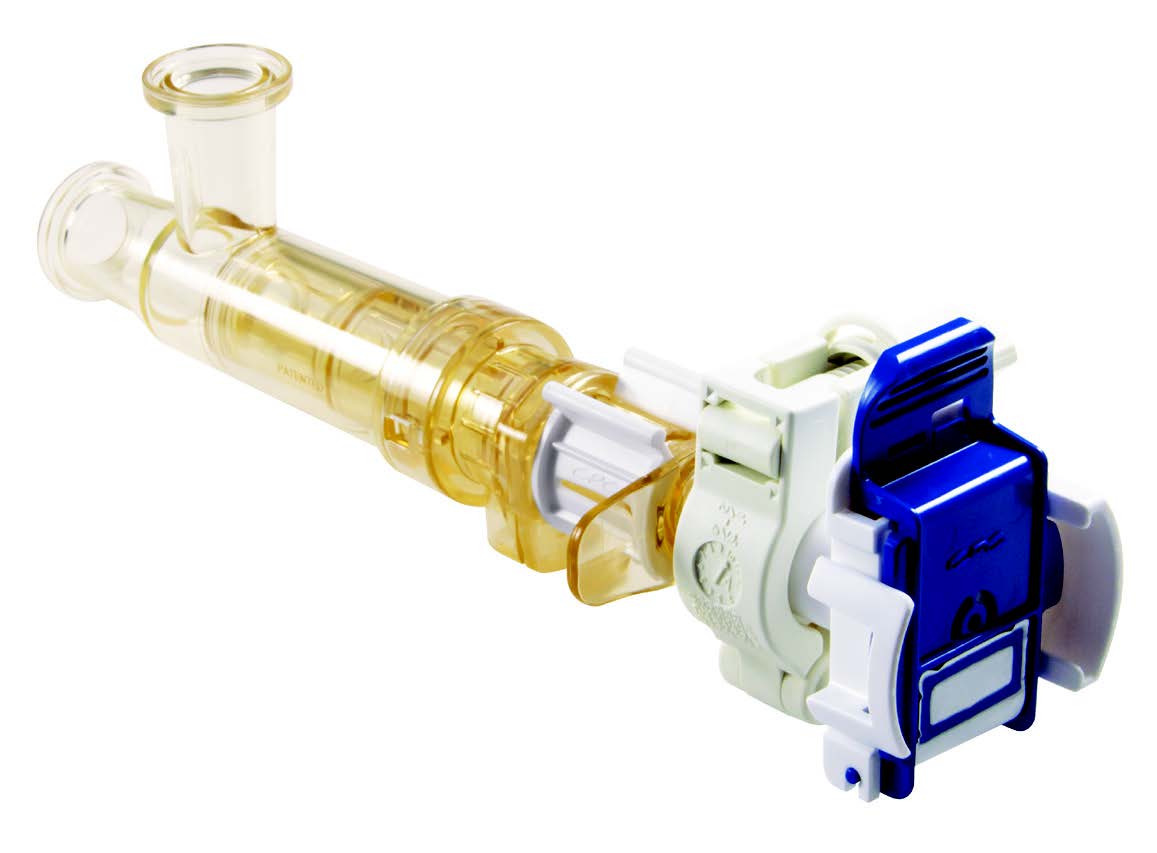

ASEPTIQUIK® STC II SERIES CONNECTORS
COMBINATION PRODUCT - Asep quick G with blue pull tabs and Steam-Thru I
COMBINATION PRODUCT - HT with Asep quick G white pull tabs and Steam-Thru II
Features
- AseptiQuik design
- Genderless Design
- Robust Construction
- Patented Steam Valve Design
- Sanitary Interface Between the Two Connectors
- CPC Click
- Market Availability
|
Features
|
Benefits
|
|---|---|
|
AseptiQuik design
|
Innovative three-step connection process reduces risk of operator error
|
|
Genderless Design
|
Eases integration of single-use systems with universal mating between AseptiQuik G Connectors
|
|
Robust Construction
|
Repeatable and reliable performance with no additional hardware required
|
|
Patented Steam Valve Design
|
Allows sterile connection and disconnection to stainless equipment and permits a high media flow rate.
|
|
Sanitary Interface Between the Two Connectors
|
More secure connection than tubing with cable ties
|
|
CPC Click
|
Audible confirmation of assembly steps
|
|
Market Availability
|
Open access through multiple supply chain partners
|
Specifications
Steam Position-
Temperature:
39°F to 104°F (4°C to 40°C)
Pressure:
Up to 35 psi, 2.4 bar (Steam-Thru II)
Flow Position-
Temperature:
39°F to 104°F (4°C to 40°C)
Pressure:
Vacuum to 20 psi, 1.4 bar
Full Connector Assembly (Choose 1)-
Gamma:
Up to 50 kGy irradiation
Autoclave:
Up to 265°F (129°C) for a total of 60 minutes
Steam-In-Place (SIP)-
Steam-Thru II:
Up to 275°F/135°C (up to ~31psig) for 60 minutes
Note: Steam pressures are estimated based upon information in Steam Tables found in literature
Sizes:
¾” and 1 ½” sanitary
Main Components:
AseptiQuik – Polycarbonate (white), USP Class VI
Steam-Thru II – Polysulfone (amber tint), USP Class VI
Seals:
Silicone (clear), platinum-cured, USP Class VI
Pull Tabs:
Polycarbonate (blue, standard version), USP Class VI
Polycarbonate (white, HT version), USP Class VI
Caps:
Polypropylene (clear), USP Class VI
Membrane:
Polyethylene (standard version), USP Class VI
Hydrophobic polyethersulfone (HT versions), USP Class VI
Clamp:
Nylon 66 (white), USP Class VI
Removable Sleeve:
Polycarbonate
CV Value:
AQS STCII CV Value 1-2
AQG STCII CV Value 3-9
AQC STCII CV Value 3-9
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses).
Specifications

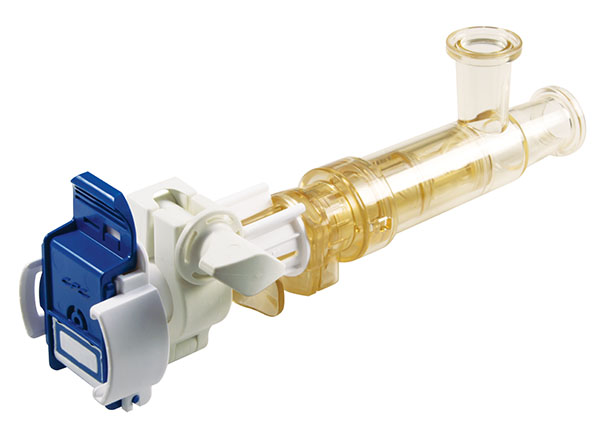

COMBINATION PRODUCT - Asep quick G with blue pull tabs and Steam-Thru II
For gamma irradia on applications.
| Part No. | Termination |
|---|---|
| AQGSTC2330900 | 3/4" X 3/4" SANITARY STEAM-THRU II WITH ASEPTIQUIK G BODY |
| AQGSTC2331000 | 3/4" X 1-1/2" SANITARY STEAM-THRU II WITH ASEPTIQUIK G BODY |
| AQSSTC2330900 | 3/4" X 3/4" SANITARY STEAM-THRU II WITH ASEPTIQUIK S BODY |
| AQSSTC2331000 | 3/4" X 1-1/2" SANITARY STEAM-THRU II WITH ASEPTIQUIK S BODY |

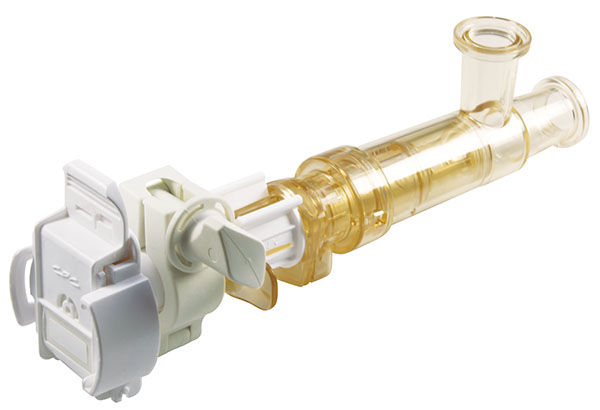

COMBINATION PRODUCT - HT with Asep quick G white pull tabs and Steam-Thru II
For autoclave or gamma irradiation applications.
| Part No. | Termination |
|---|---|
| AQGSTC2330900HT | 3/4" X 3/4" SANITARY STEAM-THRU II WITH ASEPTIQUIK G BODY |
| AQGSTC2331000HT | 3/4" X 1-1/2" SANITARY STEAM-THRU II WITH ASEPTIQUIK G BODY |
| AQSSTC2330900HT | 3/4" X 3/4" SANITARY STEAM-THRU II WITH ASEPTIQUIK S BODY |
| AQSSTC2331000HT | 3/4" X 1-1/2" SANITARY STEAM-THRU II WITH ASEPTIQUIK S BODY |
