HFC Disconnect

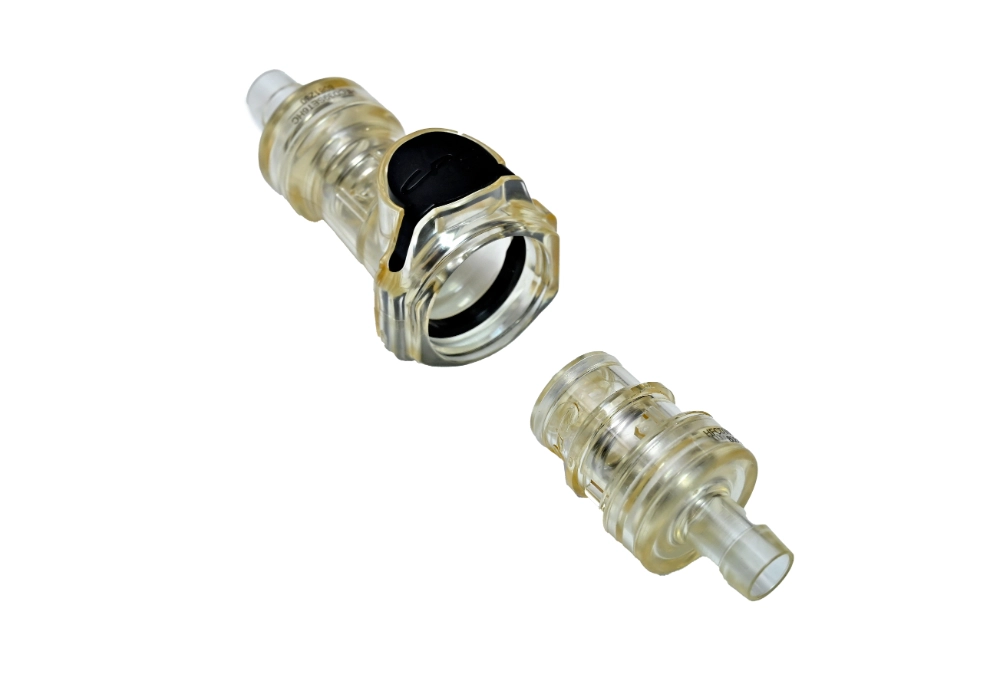

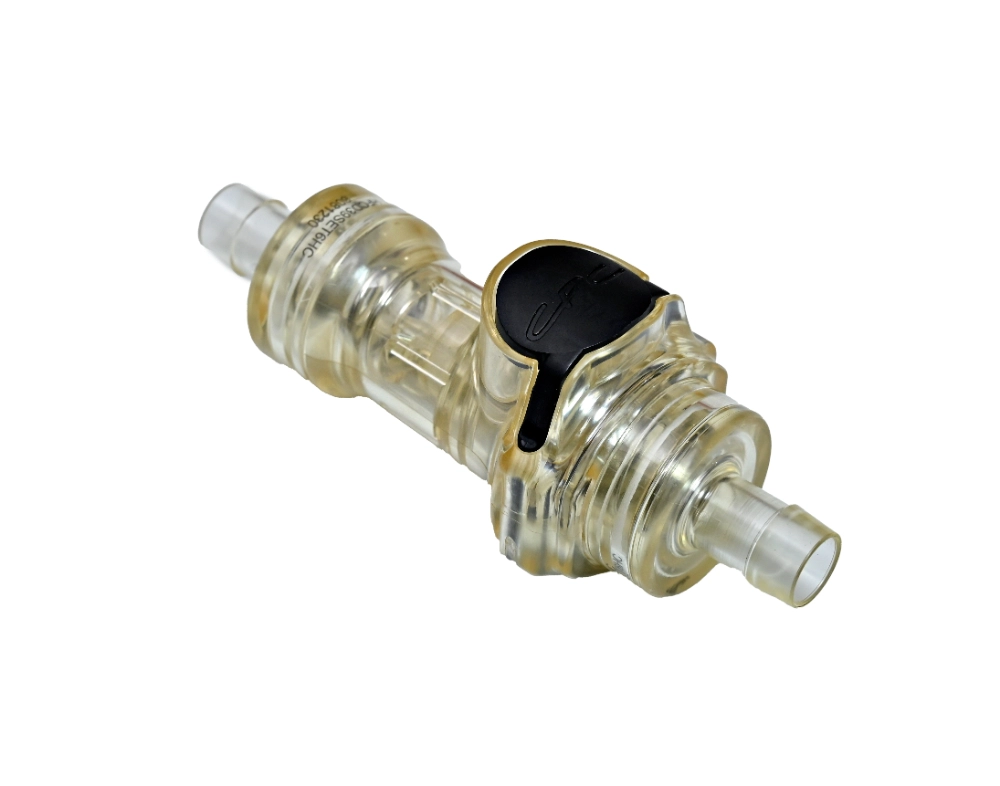

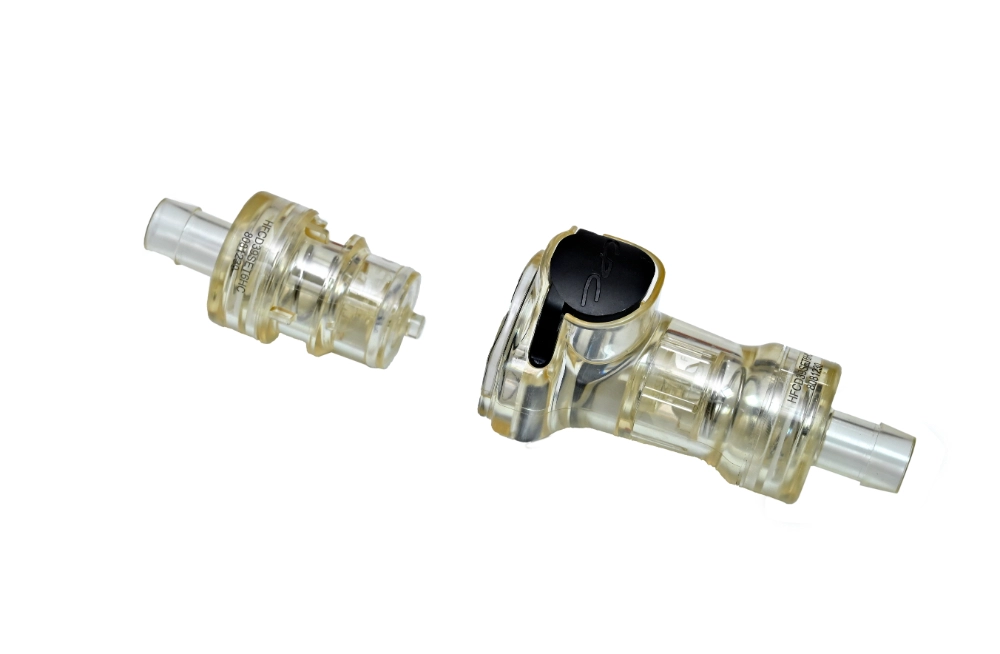

HFC Disconnects enable sterile disconnection of single-use biopharma and cell and gene therapy manufacturing systems. With an easy push of the connector thumb latch, sterility is maintained on both sides of the system during the disconnection process. The HFC Disconnect sets include protective thumb latch covers to help reduce the chance of accidental disconnection and are laser marked with item and lot numbers for complete batch traceability.
Features
- Intuitive one-step disconnection process
- Ease of connectivity
- Audible "click"

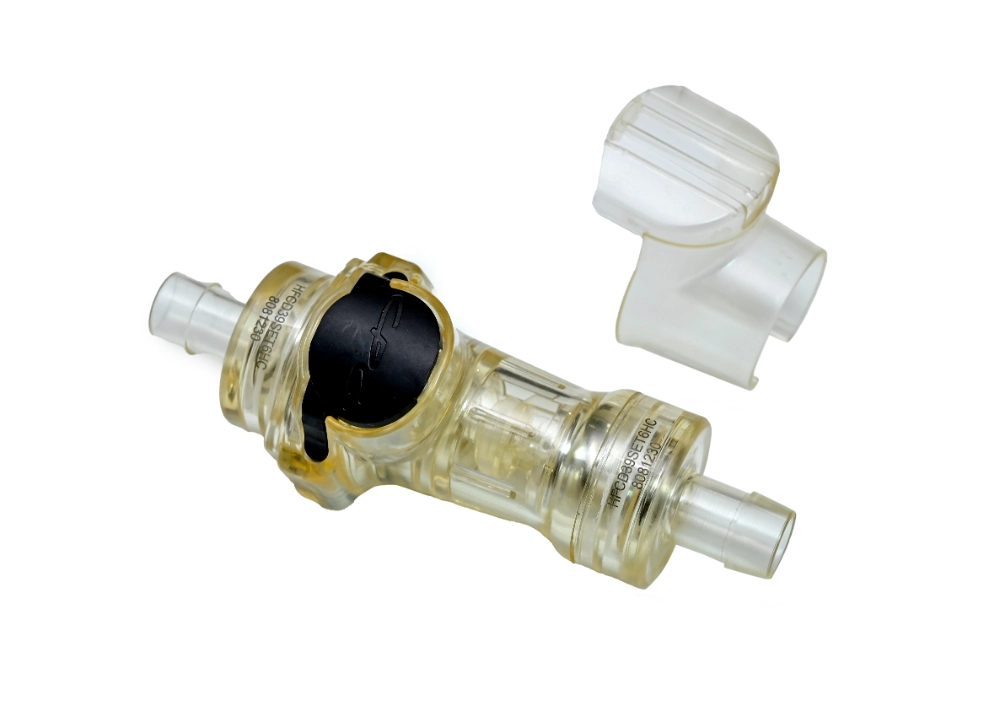

- Protective thumb latch cover
- Laser etched item number and lot number
- Alloy C-276 internal flow path spring
|
Features
|
Benefits
|
|---|---|
|
Intuitive one-step disconnection process
|
Minimize operation error and eases standard operation procedure creation and training
|
|
Ease of connectivity
|
No requirement for additional equipment to make sterile disconnection
|
|
Audible "click"
|
Provides confidence of a secure connection
|
|
Protective thumb latch cover
|
Eliminate accidental disconnects
|
|
Laser etched item number and lot number
|
Full traceability to raw material source
|
|
Alloy C-276 internal flow path spring
|
Enabling broader application compatibility
|
Specifications
Pressure:
Up to 75 psi, 5.17 bar
Temperature:
34°F (1°C) to 104°F (40°C)
Main Components:
Polysulfone (amber tint), USP Class VI, ADCF
O-rings:
Silicone (clear), platinum-cured, USP Class VI, ADCF
Flow Path Springs:
Alloy C-276
Gamma:
Up to 50 kGy irradiation.Sterilize coupled or uncoupled.
Autoclave:
Up to 270°F (132°C) for 60 minutes. One cycle
Cv Value Range:
HFC Disconnect 1/4” CV Value 0.77
HFC Disconnect 3/8” CV Value 1.1
HFC Disconnect 1/2” CV Value 1.9
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses).
Specifications
COUPLING SETS - Polysulfone -
| HFCD39SET4HC | 1/4" HOSE BARB (6.4 mm ID) |
|---|---|
| HFCD39SET6HC | 3/8" HOSE BARB (9.5 mm ID) |
| HFCD39SET8HC | 1/2" HOSE BARB (12.5 mm ID) |
COUPLING Bodies - Polysulfone -
| HFCD17439MHC | 1/4" HOSE BARB (6.4 mm ID) |
|---|---|
| HFCD17639MHC | 3/8" HOSE BARB (9.5 mm ID) |
| HFCD17839MHC | 1/2" HOSE BARB (12.5 mm ID) |
COUPLING INSERTS - Polysulfone -
| HFCD22439MHC | 1/4" HOSE BARB (6.4 mm ID) |
|---|---|
| HFCD22639MHC | 3/8" HOSE BARB (9.5 mm ID) |
| HFCD22839MHC | 1/2" HOSE BARB (12.5 mm ID) |
Mating Parts -
| HFC32039 | SEALING CAP |
|---|---|
| HFC30039M | SEALING PLUG |
