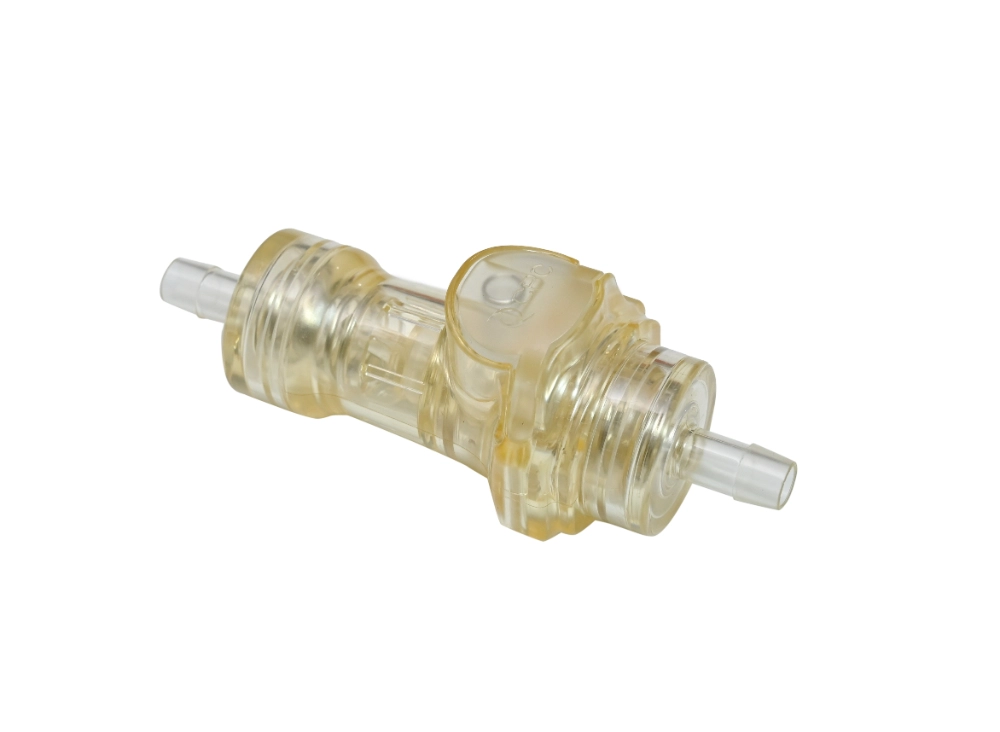

HFC39 Disconnect
HFC39 Series sterile disconnect couplings prevent external organisms from entering into the media flow path upon disconnection. Automatic shutoff valves close off the flow path aseptically, protecting valuable media while also eliminating the need for pinch clamps and tube welders. The easy-to-use thumb latch design provides a secure, leak-free connection and enables one-hand disconnects.
Features
- Automatic shutoff valves
- Audible “click”
- Lightweight
- BSE/TSE free materials
|
Features
|
Benefits
|
|---|---|
|
Automatic shutoff valves
|
Validated aseptic disconnect for pre-sterilized systems
|
|
Audible “click”
|
Provides confidence of a secure connection
|
|
Lightweight
|
Easy integration with single-use tube assemblies
|
|
BSE/TSE free materials
|
Meet ADCF requirements
|
Specifications
Pressure:
Vacuum to 125 psi, 8.62 bar
Temperature:
-40°F (-40°C) to 280°F (138°C)
Main Components:
Polysulfone (amber tint), USP Class VI, ADCF
0 Rings:
Silicone (clear), platinum-cured, USP Class VI, ADCF
Springs:
316 stainless steel
Gamma:
Up to 50 kGy gamma irradiation. Sterilize coupled or uncoupled.
Autoclave:
Up to 270°F (132°C) for 60 minutes. Up to 25 repetitions for uncoupled units and one cycle for coupled units.
Cv Value Range:
Cv ~ 1.6 (23.05) max
Cv ~ 1.5 (21.61) max
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses).
Specifications
COUPLING BODIES - Polysulfone
| SHUTOFF | |
|---|---|
| HFCD17439M | 1/4" HOSE BARB (6.4mm ID) |
| HFCD17639M | 3/8" HOSE BARB (9.5mm ID) |
| HFCD17839M | 1/2" HOSE BARB (12.5mm ID) |
COUPLING INSERTS - Polysulfone
| HFC22439M / HFC22439M | 1/4" HOSE BARB (6.4mm ID) |
|---|---|
| HFC22639M / HFC22639M | 3/8" HOSE BARB (9.5mm ID) |
| HFC22839M / HFC22839M | 1/2" HOSE BARB (12.5mm ID) |
MATING PARTS
| HFC32039 | SEALING CAP |
|---|---|
| HFC30039M | SEALING PLUG |
