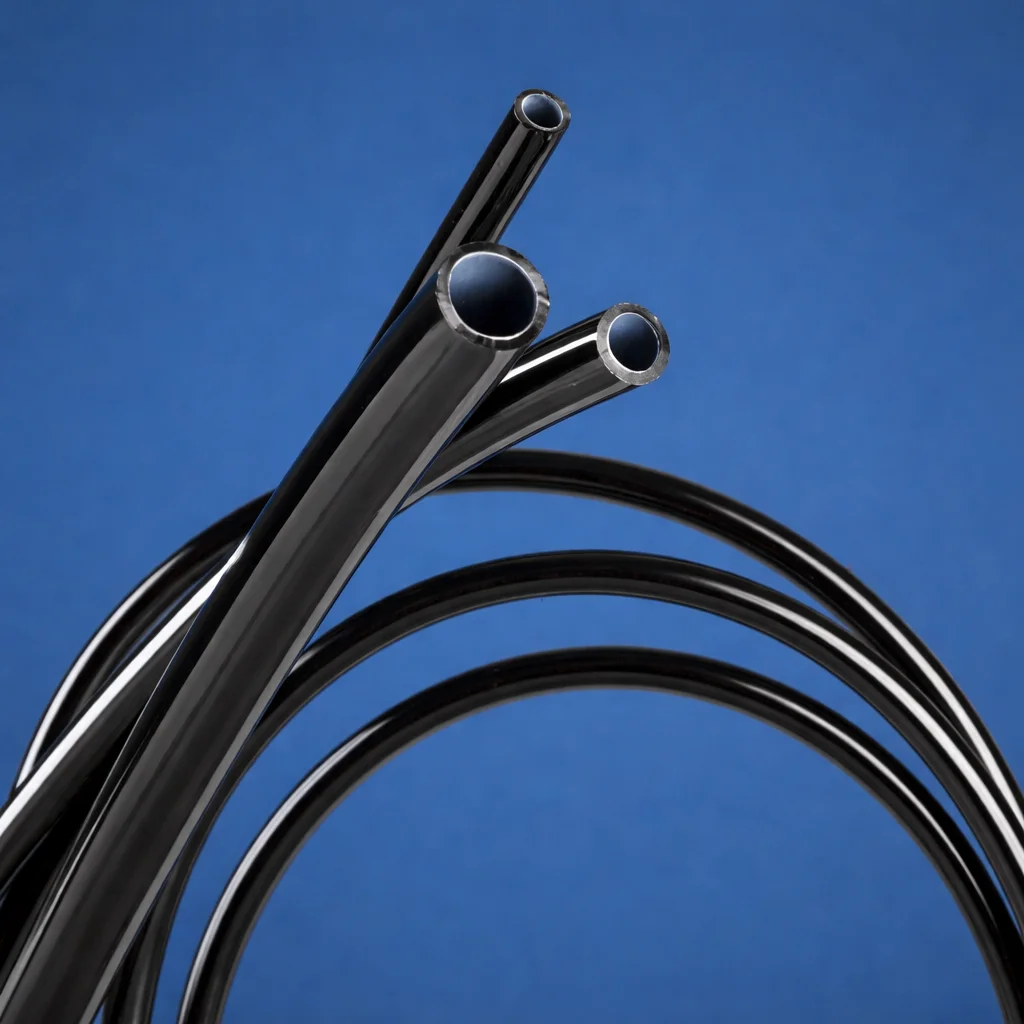

Hytrel® Tubing
Hytrel-lined PVC is a co-extruded tubing. The inner liner of Hytrel is extruded first, then farther down the production line, the outer cover of PVC is extruded around the inner liner. This product is typically applied where different performance requirements for the inside and the outside of the tube are needed. For instance, the oil resistance of Hytrel may be needed for an application in a harsh environment, where the durability of PVC is well suited.
Features
- Made from FDA-compliant ingredients; suitable for food contact
- Hytrel liner does not contain plasticizers
- Hytrel liner resists high temperatures and oils, making it ideal for hot beverage vending machine applications
- Low permeability to refrigerant gases, hydrocarbons and moisture
- Superior barrier and dielectric characteristics — well suited for welding applications
- Odorless, tasteless, and inert
- Good weathering properties to resist UV exposure, ozone, gases, moisture, and temperatures
- Low adherence of particulates — ideal for air sampling
- Ethylene Oxide (EtO) sterilizable
- Hytrel liner is REACH compliant
Applications
Aerospace Equipment* • Air Sampling • Appliances • Computer Equipment • Floor Care Equipment • Fluid Transfer • Laboratory Uses • Lawn & Garden Equipment •Packaging Equipment
xPotable Water • Propane Gas Delivery • Solvents • Thermal Protection • Vending Machines • Welding Gases TIG/MIG/MAP • More
Specifications
| Part Number | Material | ID (in.) | OD (in.) | Wall (in.) | Available Lengths (ft.) | Weight (lbs./100 ft.) |
|---|---|---|---|---|---|---|
| 4130091 | Hytrel (liner) / PVC (cover) | 0.170 | 0.250 (1/4) | 0.040 | 500 | 3 |
| 4130133 | Hytrel (liner) / PVC (cover) | 0.250 (1/4) | 0.375 (3/8) | 0.063 (1/6) | 500 | 4.2 |
| 4130217 | Hytrel (liner) / PVC (cover) | 0.375 (3/8) | 0.500 (1/2) | 0.063 (1/6) | 250 | 6 |
