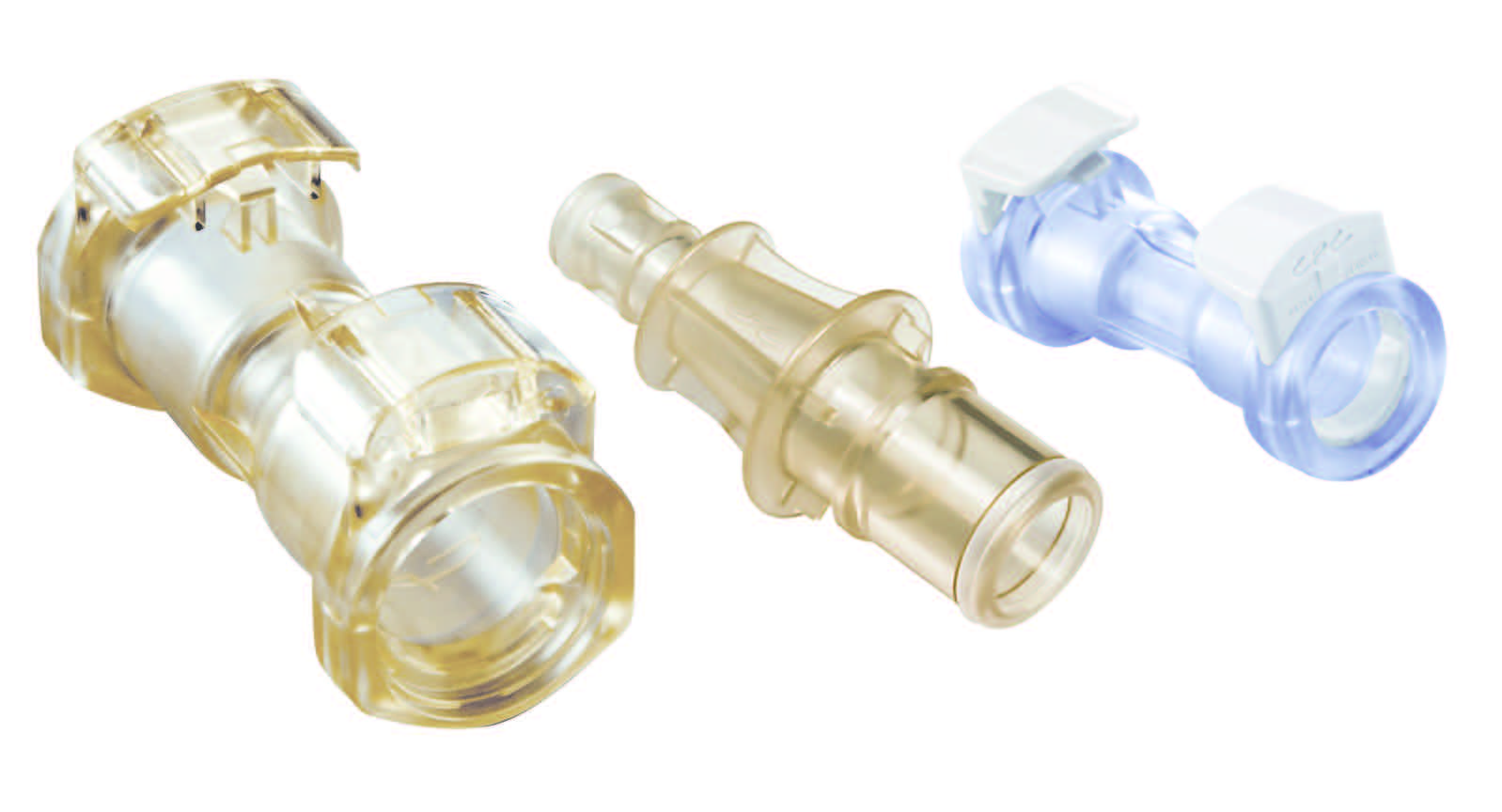

MPC/MPX BACK-TO-BACK
MPC/MPX Back-to-Back Adapters give end users the flexibility of connecting single-use systems that feature identical coupling connections at the end of their tubing. Combining both MPC and MPX couplings provides a reducing option for users who need to transition between tubing diameters ranging from 1/8″ to 1/2″.
Features
- Compatible with MPC and MPX Series inserts
- Tubing reduction option
- Ergonomic thumb latches
- BSE/TSE free materials
|
Features
|
Benefits
|
|---|---|
|
Compatible with MPC and MPX Series inserts
|
Easy conversion to industry standard connections or single-use systems
|
|
Tubing reduction option
|
Allows easy transition between multiple size tubing from 1/8" to 1/2" ID
|
|
Ergonomic thumb latches
|
Easy to operate - even with gloved hands
|
|
BSE/TSE free materials
|
Meet ADCF requirements
|
Specifications
Pressure:
Vacuum to 60 psi, 4.1 bar
Temperature:
Polycarbonate: -40°F to 250°F (-40°C to 121°C)
Polysulfone: -40°F to 300°F (-40°C to 149°C)
Main Components:
Polycarbonate (purple tint), USP Class VI, ADCF
Polysulfone (amber tint), USP Class VI, ADCF
Thumb latches:
Polycarbonate (white), USP Class VI, ADCF
Polysulfone (amber tint), USP Class VI, ADCF
O-rings:
Silicone (clear), platinum-cured, USP Class VI, ADCF
Gamma:
Up to 50kGy irradiation
Autoclave:
Polycarbonate: Up to 250°F (121°C), 30 minutes, up to 10 repetitions. Sterilize uncoupled only.
Polysulfone: Up to 270°F (132°C) for 60 minutes, up to 25 repetitions. Sterilize uncoupled only.
CV Value:
Cv~5.5 (79.25) max
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses).
Specifications
MPC/MPX BACK-TO-BACK INSERT ADAPTERS - Polysulfone
| Part No. | Type |
|---|---|

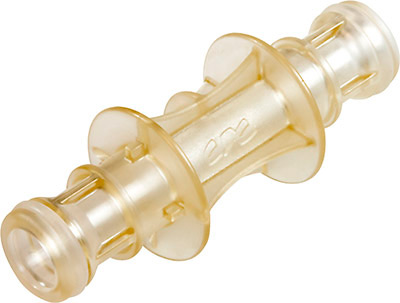

| MPC22C2239M | MPC to MPC |

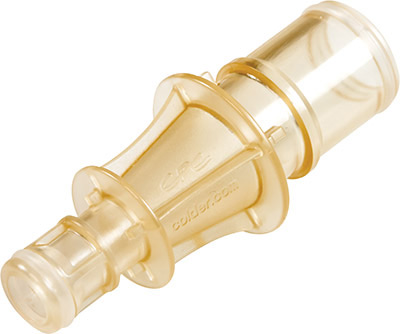

| MPC22X2239M | MPC to MPX |
| MPX22X2239M | MPX to MPX |
MPC/MPX BACK-TO-BACK BODY ADAPTERS - Polycarbonate
| Part No. | Type |
|---|---|

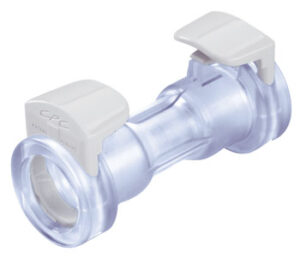

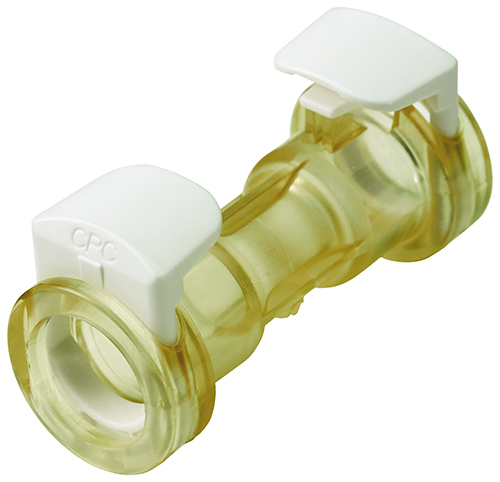

| MPC17C1703 | MPC to MPC |
| MPX17X1703 | MPX to MPX |
| MPC17X1703 | MPC to MPX |
MPC/MPX BACK-TO-BACK BODY ADAPTERS - Polysulfone
| Sealing Cap | W/Lock | Material |
|---|---|---|
| MPx32003 | MPxK32003 | Polycarbonate |
| 'MPxX32039 | MPxK32039 | Polysulfone |
