MPU
MPU Connectors’ twist-to-connect design features an easy-to-use locking mechanism that guards against accidental disconnects and provides a reliable, secure connection. The 3/4″ and 1″ hose barbs provide smooth, rapid media transfer.
MPU Connectors’ twist-to-connect design
Features
- 3/4" & 1" hose barb
- Locking feature
- Sharp barb end
- Shrouded, leak-free seal & smooth, internal flow path
|
Features
|
Benefits
|
|---|---|
|
3/4" & 1" hose barb
|
Facilitates rapid fill and empty of bioprocessing bags
|
|
Locking feature
|
Guards against accidental disconnects
|
|
Sharp barb end
|
Minimizes fluid turbulence and dead space
|
|
Shrouded, leak-free seal & smooth, internal flow path
|
Protect valuable fluids and eliminate potential to contaminate fluid path
|
Specifications
Pressure:
Up to 35 psi, 2.41 bar
Temperature:
-40°F to 300°F (-40°C to 149°C)
Main Components:
Polysulfone (amber tint), USP Class VI, ADCF
0 Rings:
Silicone (clear), platinum-cured, USP Class VI, ADCF
Gamma:
Up to 50 kGy irradiation
Autoclave:
Up to 270°F (132°C) for 60 minutes, up to 25 repetitions. Sterilize uncoupled only.
Cv Value:
Cv ~ 20.9 (301.14) max
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses).
Specifications
COUPLING BODIES - Polysulfone
| Part No. | Termination |
|---|---|
| MPU171239 | 3/4" ID HOSE BARB (19.0 mm ID) |

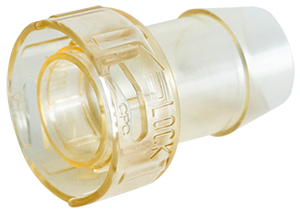

| MPU171639 | 1" ID HOSE BARB (25.4 mm ID) |
COUPLING INSERTS - Polysulfone
| Part No. | Termination |
|---|---|
| MPU221239M | 3/4" ID HOSE BARB (19.0 mm ID) |
| MPU221639M | 1" ID HOSE BARB (25.4 mm ID) |
SEALING COMPONENTS - Polysulfone
| Part No. | Termination | Type | Material |
|---|---|---|---|
| MPU32039 | Sealing Cap | Polysulfone | |
| MPU30039M | Sealing Plug | Polysulfone |
