MPX

MPX Series Connectors make it easy to quickly connect-disconnect and transfer fluid or media anywhere in your process. Simply push the two halves together to connect, and disconnect by pressing the thumb latch to separate. To protect the lines before and between transfers, caps and plugs are available for sealing off disconnected halves and optional locking sleeves are available to prevent accidental disconnects. Coupling halves can be rotated while connected to reduce tube kinks. The MPX offers additional flexibility when changing to a larger tubing size, with the Back-to-Back adapter connecting to the MPC product. Choose from a full line of male and female MPC connectors and configurations, in sizes to fit 1/2″, 3/8″ and 3/4″ tubing. For a quick connection rely on the MPX series connectors.

MPX Series Connectors add ease of use and security to your media transfer applications. Choose from a full line of connectors and configurations, including pressure-sealing caps and plugs in sizes to fit 3/8″ and 1/2″ tubing. MPX couplings offer optional locking sleeves to further guard against accidental disconnects. In addition, coupling halves can be rotated when connected, reducing tube kinks.

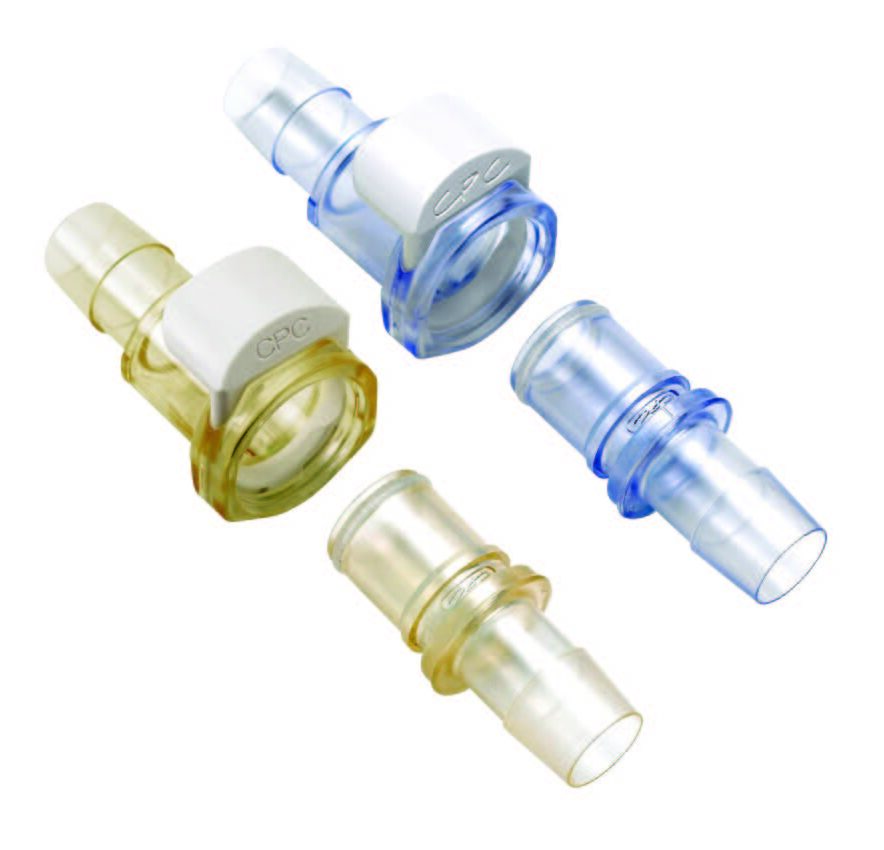

CPC-MPX-Spec-Sheet

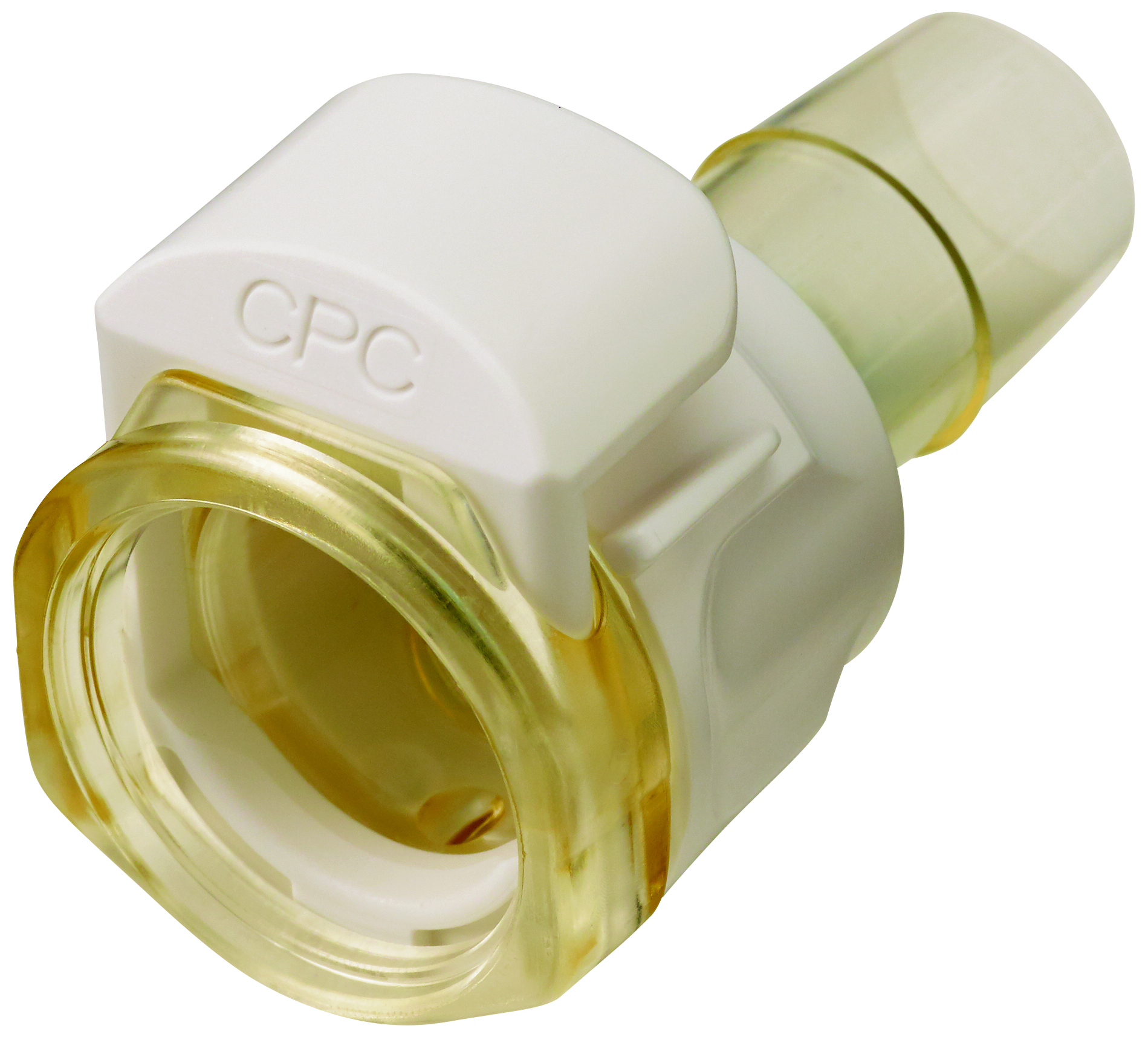

MPXK17839

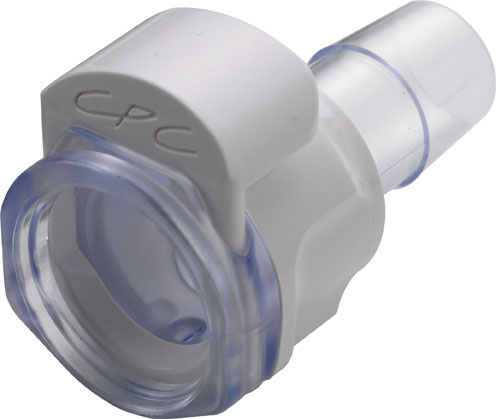

MPXK17803

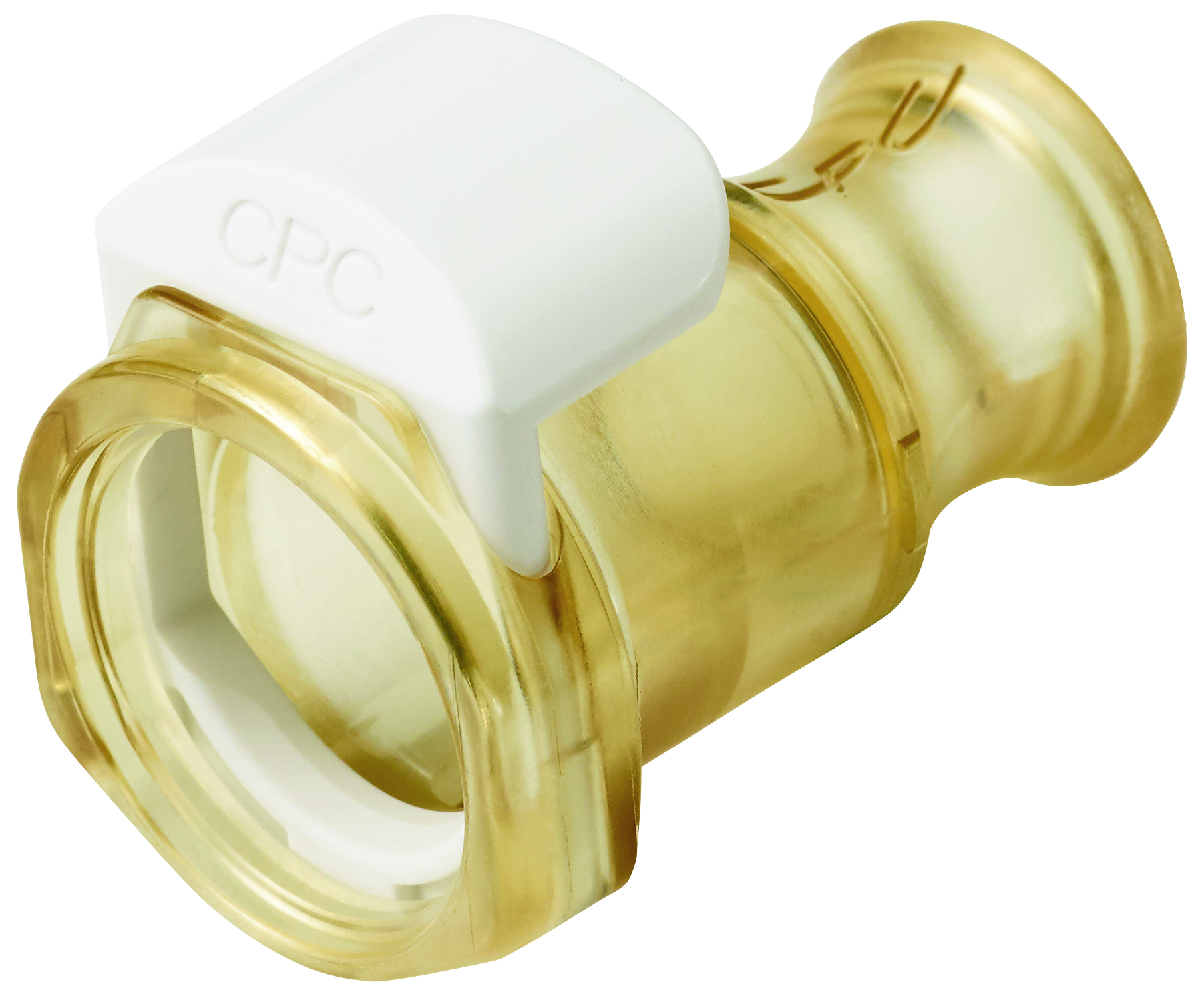

MPX32039

MPX32003

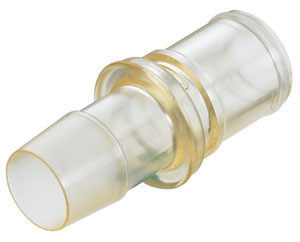

MPX22839M

MPX22803M

MPX30039M

MPX30003M

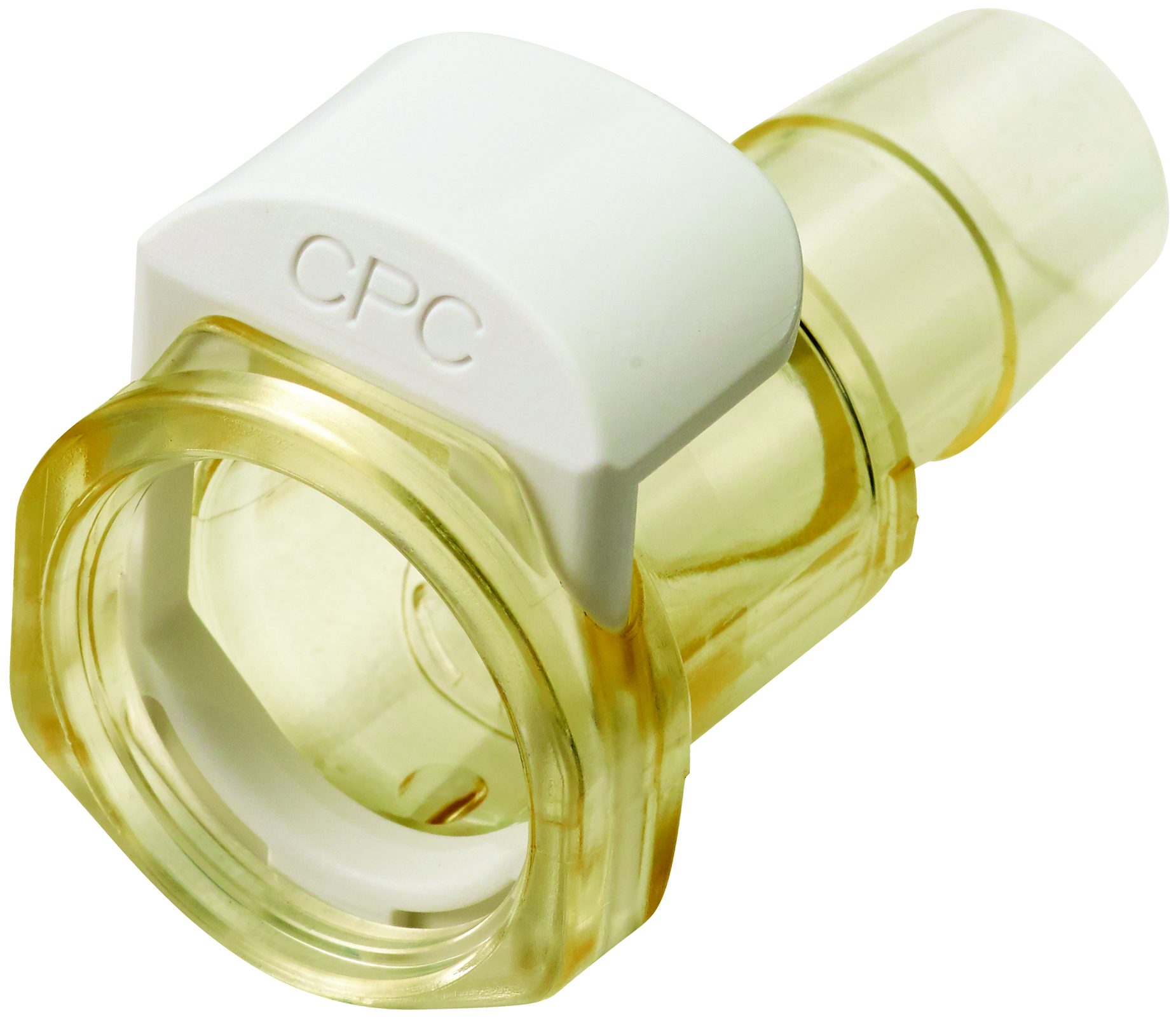

MPX17839

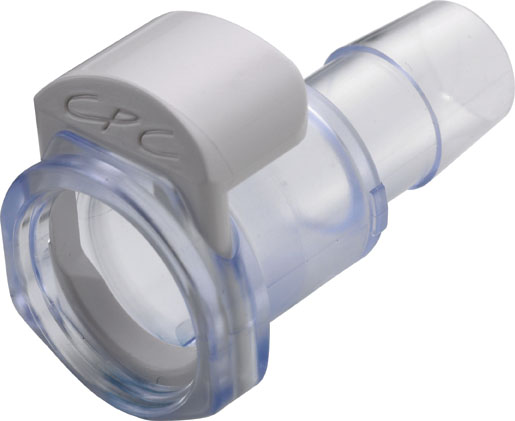

MPX17803

Features

Ergonomic thumb latch
USP Class VI materials
Sterilizable by autoclave, Et0, e-beam, or gamma
Protective thumb latch cover
Parting line-free hose barb
ADCF-free materials

Features	Benefits
Ergonomic thumb latch	Easy to operate – even with gloved hands
USP Class VI materials	Meet biocompatibility requirements
Sterilizable by autoclave, Et0, e-beam, or gamma	Reusable, yet economical enough to allow disposability
Parting line-free hose barb	Eliminates potential leak path
ADCF-free materials	Meet BSE/TSE requirements

Specifications

Main components:
Polycarbonate (purple tint), USP Class VI, ADCF
Polysulfone (amber tint), USP Class VI, ADCF

Locking sleeves:
Polysulfone (white), USP Class VI, ADCF

Thumb latches:
Polycarbonate (white), PVDF (white), USP Class VI, ADCF

O-rings:
Silicone (clear), platinum-cured, USP Class VI, ADCF

Gamma Irradiation:
Up to 50 kGy irradiation.

Autoclave:
Polycarbonate: Up to 250°F (121°C), 30 minutes, up to 10 repetitions. Sterilize uncoupled only.
Polysulfone: Up to 270°F (132°C) for 60 minutes, up to 25 repetitions. Sterilize uncoupled only.

Cv Value:
Cv ~ 14.2 (204.60) max
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses).

Specifications

COUPLING BODIES

Polycarbonate Part No.	Polysulfone Part No.	Termination
MPX178031	MPX178391	1/2" ID HOSE BARB (2.7 mm ID)
MPXK178031	MPXK178391	1/2" ID HOSE BARB W/ LOCK (2.7 mm ID)

Coupling Inserts

Polycarbonate Part No.	Polysulfone Part No.	Termination
MPX22603M	MPX22639M	3/8" HOSE BARB (9.5 mm ID)

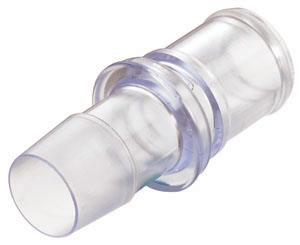

MPX22803M	MPX22839M	1/2" HOSE BARB (12.7 mm ID)

Sealing Cap	W/Lock	Material

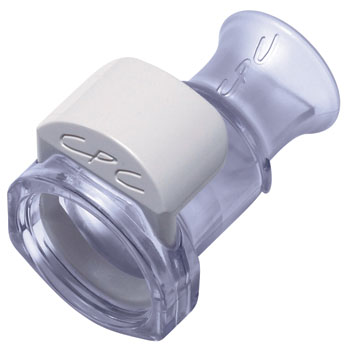

MPx32003	MPxK32003	Polycarbonate
'MPxX32039	MPxK32039	Polysulfone

Sealing Plug	Material

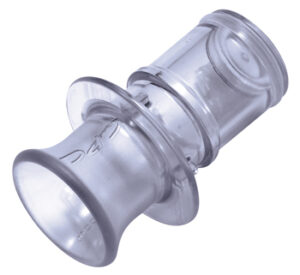

MPX30003M	Polycarbonate

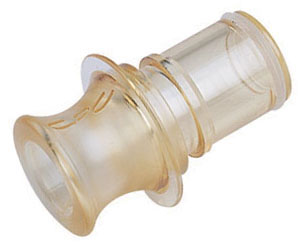

MPX30039M	Polysulfone
