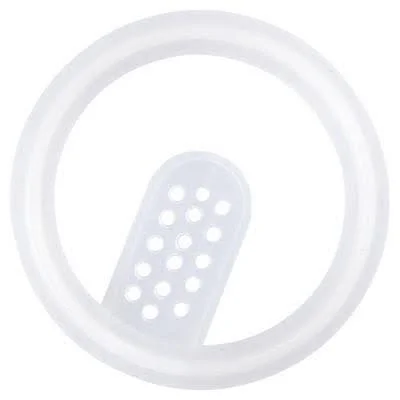

Smart Gasket with Spore Trap and Smart Gasket Clamps
Designed to securely retain and accurately expose spore challenge test strips, for use in steam sterilization when validating, Prevents loss of Spore Test Strips in process system.
Can be installed easily, Safe to use & User-friendly. Available without or with 1 port.
The Spore trap. with its securely retained test strip, can easily be removed and re-challenged after each validation cycle. Spore Trap Slo ed Hinge Clamp works with Spore Trap for collecting samples within a piping system. The Spore Trap Slotted Hinge Clamp is available with one port or no port.
Specifications
| Gasket Size | Material | No Port | 1 Port |
|---|---|---|---|
| 1-1/2" | Platinum-cured Silicone | SBR150S-0 | SBR150S-1 |
| 1-1/2" | EPDM | SBR150E-0 | SBR150E-1 |
| 2" | Platinum-cured Silicone | SBR200S-0 | SBR200S-1 |
| 2" | EPDM | SBR200E-0 | SBR200E-1 |
| 3" | Platinum-cured Silicone | SBR300S-0 | SBR300S-1 |
| 3" | EPDM | SBR300E-0 | SBR300E-1 |
| 4" | Platinum-cured Silicone | SBR400S-0 | SBR400S-1 |
| 4" | EPDM | SBR400E-0 | SBR400E-1 |
| Size | Material | No Port | 1 Port |
| 1-1/2" | SS304 | SBC150Y-0 | SBC150Y-1 |
| 2" | SS304 | SBC200Y-0 | SBC200Y-1 |
| 3" | SS304 | SBC300Y-0 | SBC300Y-1 |
| 4" | SS304 | SBC400Y-0 | SBC400Y-1 |
