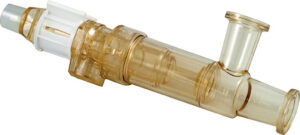

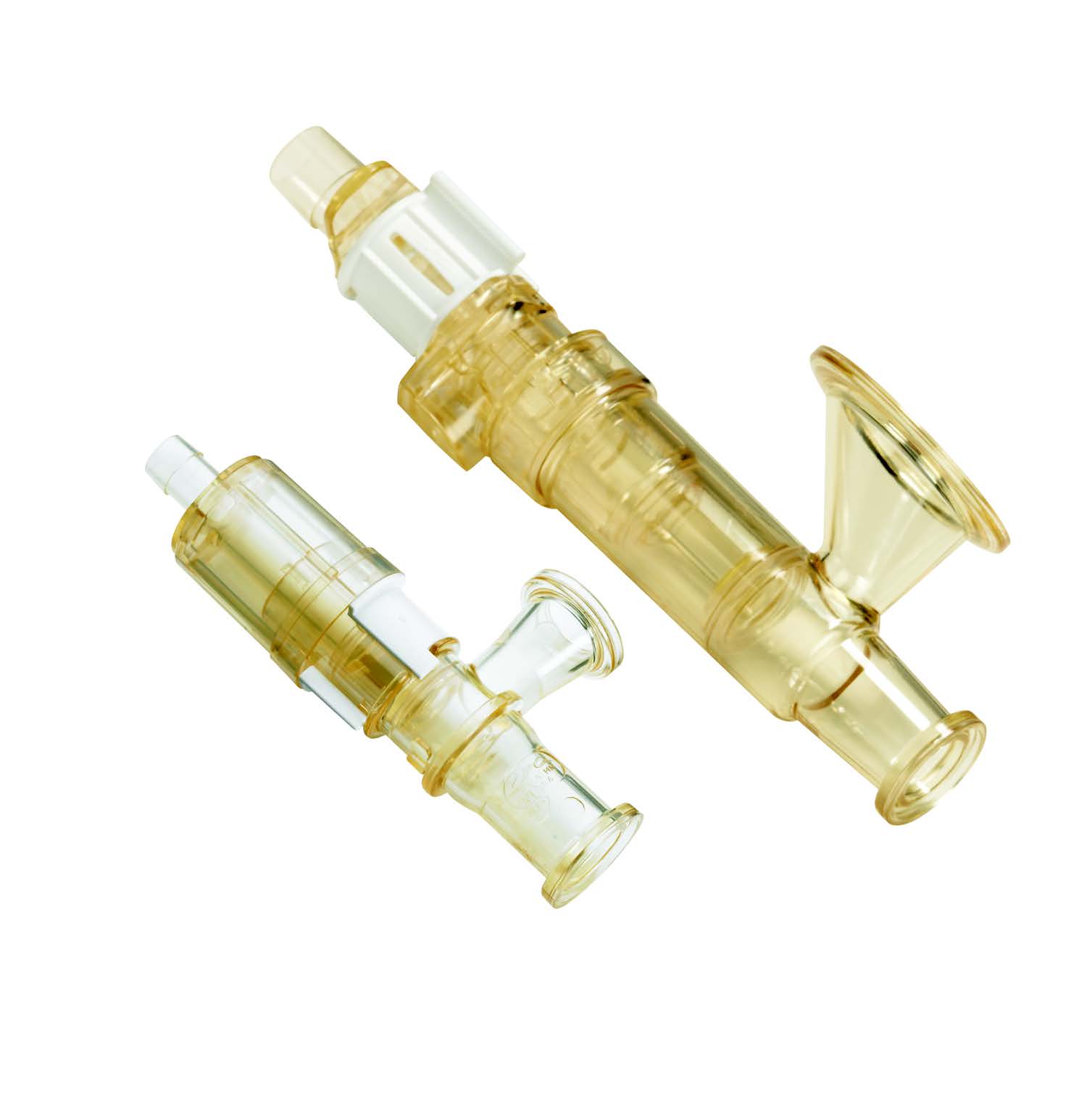

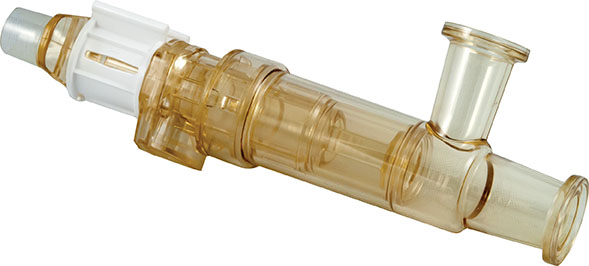

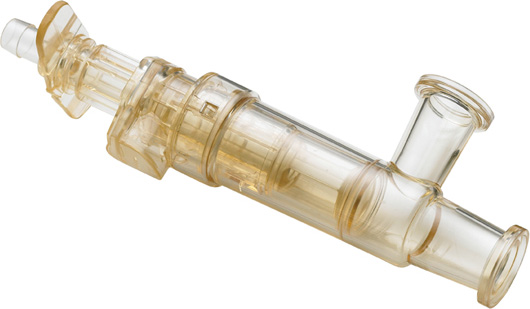

STEAM-THRU SERIES CONNECTORS
Features
- Innovative three-port design
- Patented valve design
- Thumb latch/Tear-away sleeve
- Industry standard terminations
- ADCF-free materials
|
Features
|
Benefits
|
|---|---|
|
Innovative three-port design
|
Allows a true steam-through SIP process which eliminates "dead legs" and the need for laminar flow hoods
|
|
Patented valve design
|
Allows sterile connection and disconnection and permits high media flow rate
|
|
Thumb latch/Tear-away sleeve
|
Secures valve position, provides visual indicator of process stage
|
|
Industry standard terminations
|
Speed connect to the process equipment and connect to popular sizes of flexible tubing
|
|
ADCF-free materials
|
Meet BSE/TSE requirements
|
Specifications
Steam Position-
Temperature:
39°F to 104°F (4°C to 40°C)
Pressure:
Up to 30 psi, 2.1 bar (Steam-Thru)
Up to 35 psi, 2.4 bar (Steam-Thru II)
Flow Position-
Temperature:
39°F to 104°F (4°C to 40°C)
Pressure:
Vacuum to 20 psi, 1.4 bar
Full Connector Assembly (Choose 1)-
Gamma:
Up to 50 kGy irradiation
Autoclave:
Up to 265°F (129°C) for a total of 60 minutes
Steam-In-Place (SIP)-
Steam-Thru:
Up to 266°F/130°C (up to ~24psig) for 60 minutes
Steam-Thru II:
Up to 275°F/135°C (up to ~31psig) for 60 minutes
Note: Steam pressures are estimated based upon information in Steam Tables found in literature
Sizes:
½”; 3/8” hose barb; ¾” sanitary
Main Components:
Polysulfone (amber tint), USP Class VI
Seals:
Silicone (clear), platinum-cured, USP Class VI
Removable Sleeve:
Polycarbonate
CV Value:
Cv~4.2 – 4.6 (Steam-Thru)
Cv~5.2 – 8.0 (Steam-Thru II)
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses).
Specifications

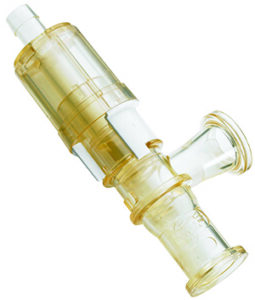

STEAM-THRU l Series Connectors POLYSULFONE with polycarbonate sleeve
| Part No. | Termination | Type | Material |
|---|---|---|---|
| STC1700000 | 3/4" X 3/4" SANITARY X 1/2" HB | ||

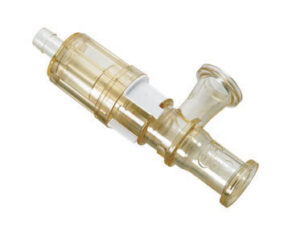

| STC1700100 | 3/4" X 3/4" SANITARY X 3/8" HB | ||
| STC1700200 | 3/4" X 1-1/2" SANITARY X 1/2" HB | ||
| STC1700300 | 3/4" X 1-1/2" SANITARY X 3/8" HB |
